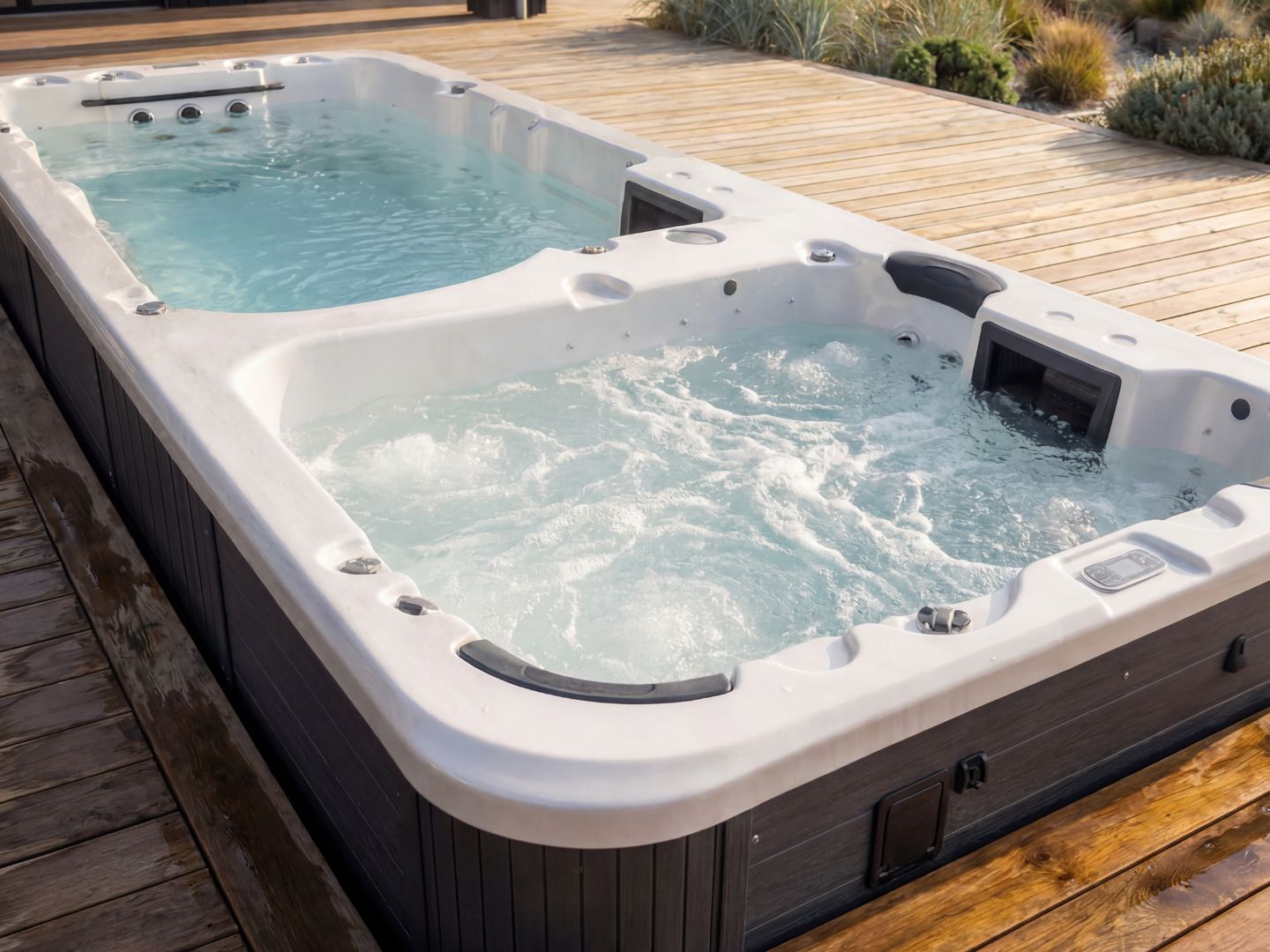

Combined pool and hot tub
Play your own music with the built-in Bluetooth ® music system If you buy an Atletion swim spa you get free music systems, and “water cannons” included. For outdoor wellness all year round. Exercise every day with swim training in 26 degrees hot water. Then grab some well-deserved relaxation in the hot tub’s 38 degree of hot wellness bubbles. Summer, and winter under the open sky. To provide optimal water flow for your swim training, we have installed extra nozzles, and pump power. In doing so, you decide for yourself how powerful a stream of water you can, or will swim against.
Specifications

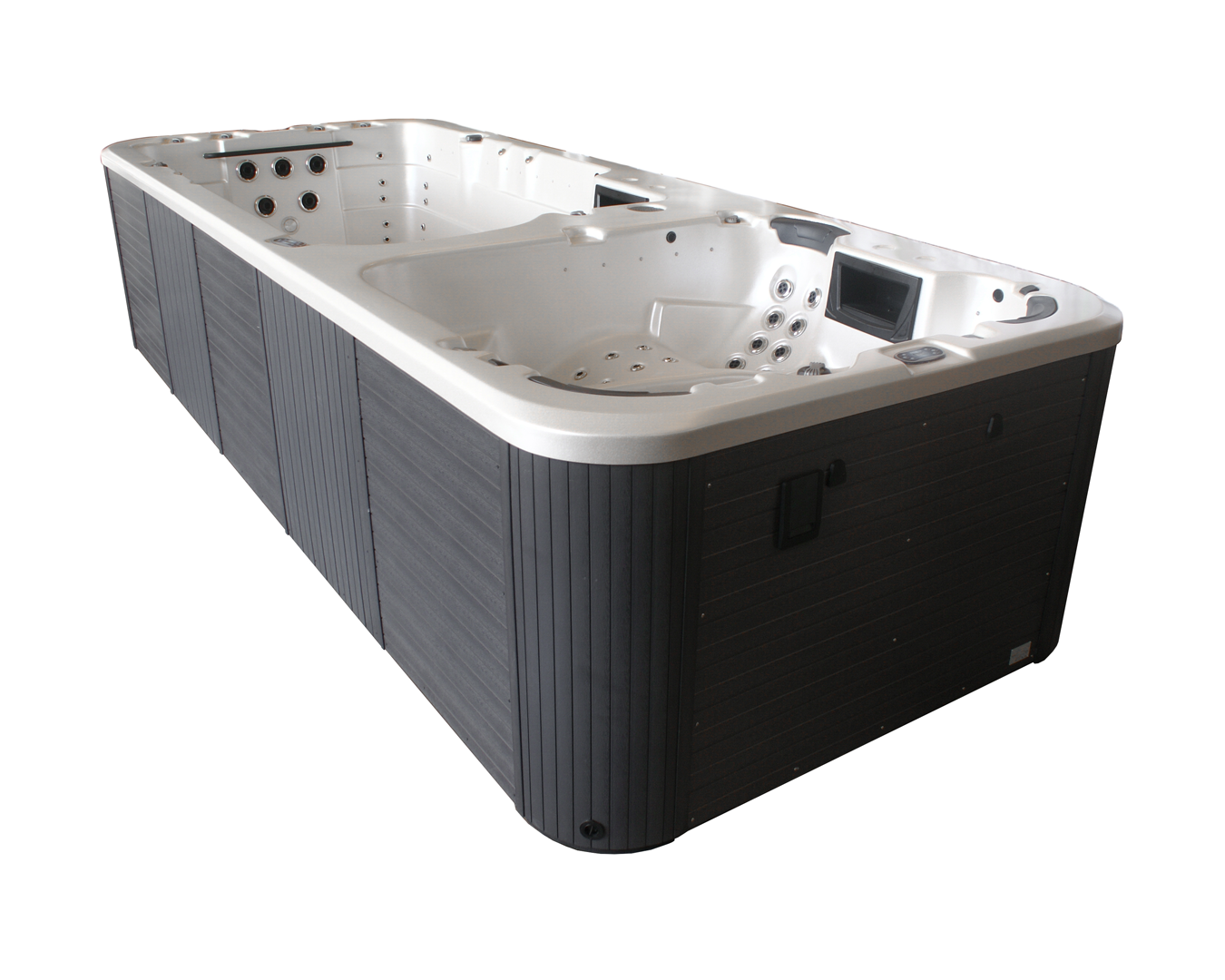

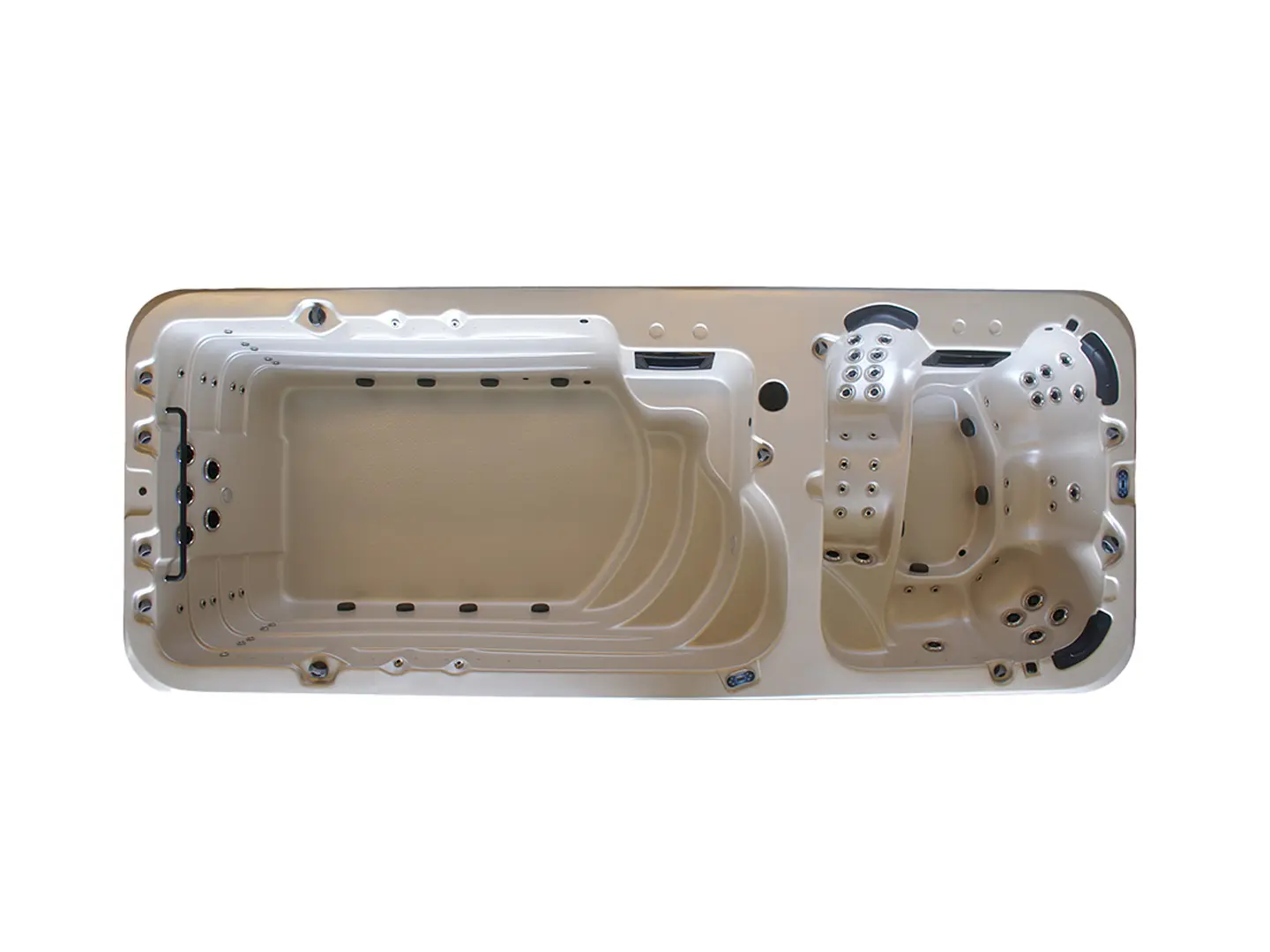

Dimensions: L: 593 cm x W: 230 cm x H: 130 cm
Number of seats: 4 seats
Color: Pearl
Color cabinet: Slate
Stand: Steel
Base plate: Molded PVC
Tub: Molded sanitary acrylic
Water volume: Pool: 5.450 liters. Spa: 1260 liters
Weight: 1500 kg
Insulation:
The underside of the spa: 2-3 cm foam insulation. We recommend that you place the swimspa on a 50 millimeter insulation board.
Sides: 5 cm insulation on three sides, service side; 3 cm insulation. All insulation is reinforced with heat-reflective foil.

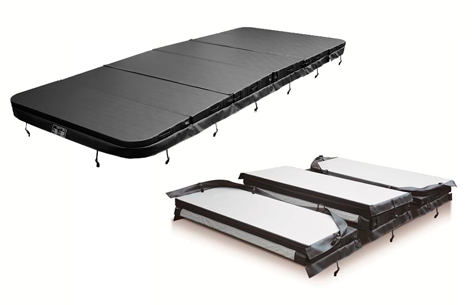

Cover: Foamed polystyrene. Extra strong top cover, 15 cm thick with slope. Slate color.
We recommend that you place the swim spa on a 50 mm insulation board.

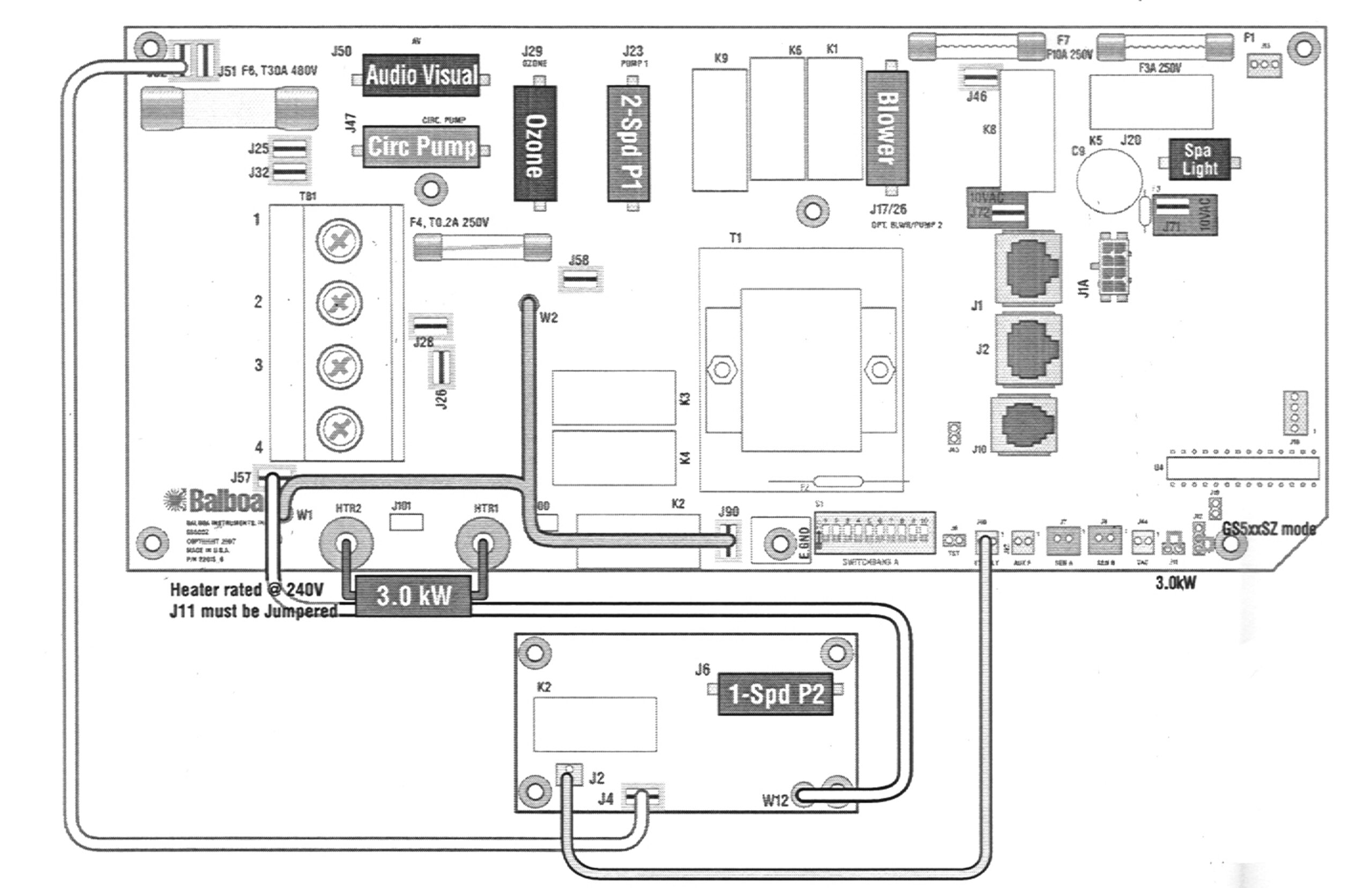

Control Panel: Balboa TP600 control system with touch screen (mounted on the side)
Heating unit in swim spa: 6 kW with thermostat control
Heating unit in spa: 3 kW with thermostat control
Cirkulation pump: 1 pc. (180 W)
Jet pump: 2 pc. in the spa
Pump with pneumatic on / off: 1 pc. (1.5 hk)

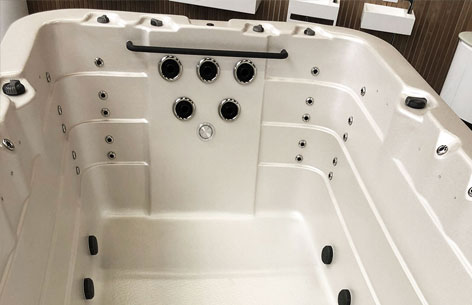

Total number of massage jets: 57 pc. stainless
Neck Pillows: 2 pc.
Light: 32 pc. LED-lamps
Ozonator: Yes
Filter: 2 pc. slats
Drain at the bottom of the tub: Yes
Swimming and exercise system: 3 large and powerful jets
Electrical connection swimming and exercise system: 400 V, 20 A *
* The 6 kW heater consists of 2 x 3 kW heaters, where you often only get 1 x 3 kW heater with other suppliers. Where the load from 6 kW is too large, you can choose to switch off one of these 3 kW heaters. The electrical connection for the pool can then be reduced to 400V / 16A.
Electrical connection Spa: 400 V, 16A
OBS! It is always the responsibility of the customer / owner that the installer has free access to do his work, even when service is required in the areas outside the specified service area.
Nordkap Living recommend:
WARNING!
Turn off the power before refilling and replacing water in the spa. The heater must NEVER run without water in the spa, otherwise it will overheat and break down. An overheating of the heater is NOT covered by the warranty.
